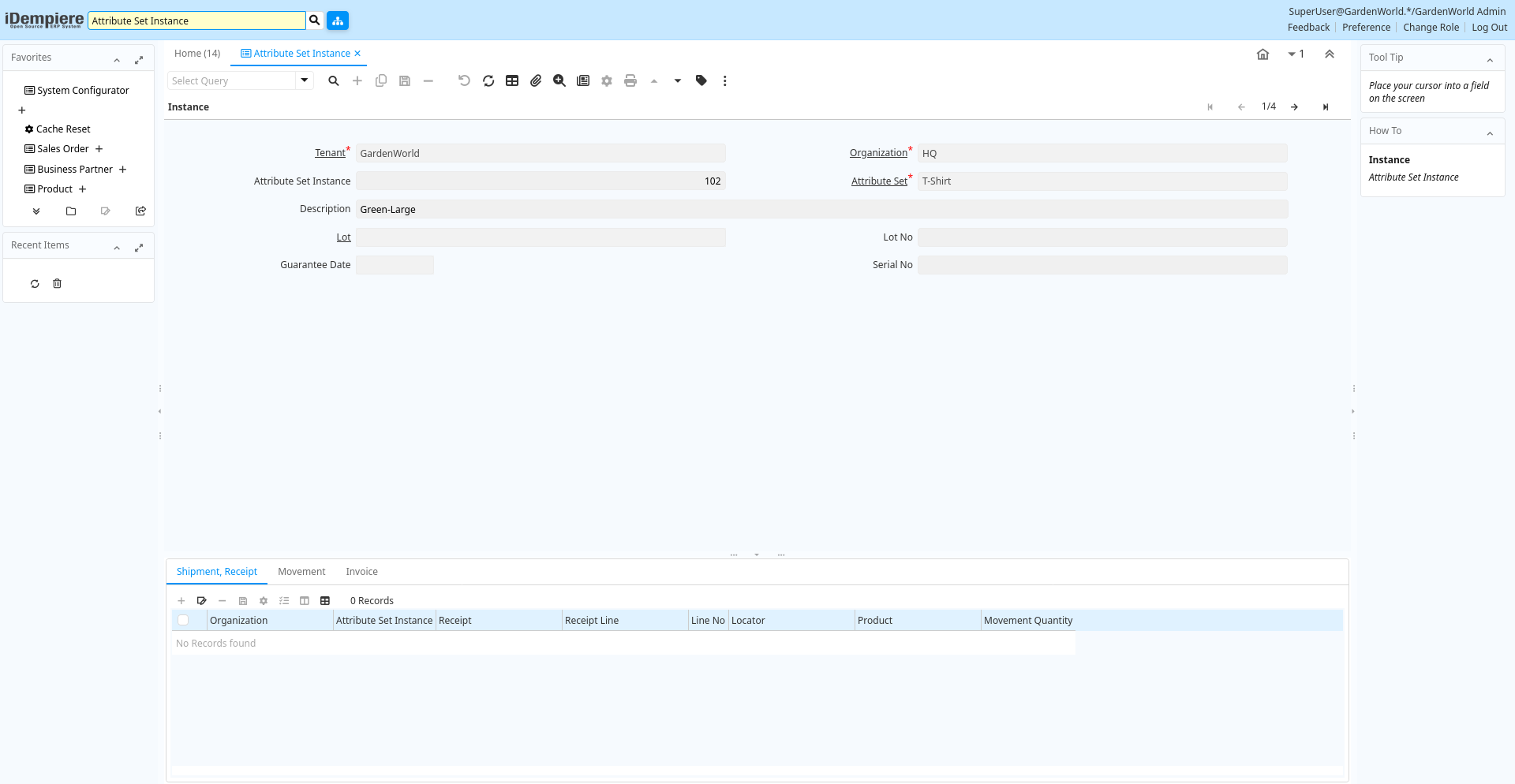

Window: Attribute Set Instance
[Created: 12/09/2005 - Updated: 12/09/2005 ]
Description: View Attribute Set Instance detail and use
Help:
Tab: Instance
[Created: 12/09/2005 - Updated: 12/09/2005 ]
Description: Attribute Set Instance
Help:
Tab Level: 0
Table 10: Instance - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_attributesetinstance.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_attributesetinstance.AD_Org_ID numeric(10) Table Direct |
| Attribute Set Instance | Product Attribute Set Instance | The values of the actual Product Attribute Instances. The product level attributes are defined on Product level. | m_attributesetinstance.M_AttributeSetInstance_ID numeric(10) ID |
| Attribute Set | Product Attribute Set | Define Product Attribute Sets to add additional attributes and values to the product. You need to define a Attribute Set if you want to enable Serial and Lot Number tracking. | m_attributesetinstance.M_AttributeSet_ID numeric(10) Table Direct |
| Description | Optional short description of the record | A description is limited to 255 characters. | m_attributesetinstance.Description character varying(1023) String |
| Lot | Product Lot Definition | The individual Lot of a Product | m_attributesetinstance.M_Lot_ID numeric(10) Search |
| Lot No | Lot number (alphanumeric) | The Lot Number indicates the specific lot that a product was part of. | m_attributesetinstance.Lot character varying(40) String |
| Guarantee Date | Date when guarantee expires | Date when the normal guarantee or availability expires | m_attributesetinstance.GuaranteeDate timestamp without time zone Date |
| Serial No | Product Serial Number | The Serial Number identifies a tracked, warranted product. It can only be used when the quantity is 1. | m_attributesetinstance.SerNo character varying(40) String |
Tab: Shipment, Receipt
[Created: 12/09/2005 - Updated: 12/09/2005 ]
Description: Material Shipment and Receipt Lines
Help:
Tab Level: 1
Table 20: Shipment, Receipt - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_inoutlinema_v.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_inoutlinema_v.AD_Org_ID numeric(10) Table Direct |
| Attribute Set Instance | Product Attribute Set Instance | The values of the actual Product Attribute Instances. The product level attributes are defined on Product level. | m_inoutlinema_v.M_AttributeSetInstance_ID numeric(10) Product Attribute |
| Receipt | Material Receipt Document | The Material Shipment / Receipt | m_inoutlinema_v.M_InOut_ID numeric(10) Search |
| Receipt Line | Line on Receipt document | m_inoutlinema_v.M_InOutLine_ID numeric(10) Search | |
| Line No | Unique line for this document | Indicates the unique line for a document. It will also control the display order of the lines within a document. | m_inoutlinema_v.Line numeric(10) Integer |
| Locator | Warehouse Locator | The Locator indicates where in a Warehouse a product is located. | m_inoutlinema_v.M_Locator_ID numeric(10) Search |
| Product | Product, Service, Item | Identifies an item which is either purchased or sold in this organization. | m_inoutlinema_v.M_Product_ID numeric(10) Search |
| Movement Quantity | Quantity of a product moved. | The Movement Quantity indicates the quantity of a product that has been moved. | m_inoutlinema_v.MovementQty numeric Quantity |
Tab: Movement
[Created: 12/09/2005 - Updated: 12/09/2005 ]
Description: Material Movement Lines
Help:
Tab Level: 1
Table 30: Movement - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_movementlinema_v.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_movementlinema_v.AD_Org_ID numeric(10) Table Direct |
| Attribute Set Instance | Product Attribute Set Instance | The values of the actual Product Attribute Instances. The product level attributes are defined on Product level. | m_movementlinema_v.M_AttributeSetInstance_ID numeric(10) Product Attribute |
| Inventory Move | Movement of Inventory | The Inventory Movement uniquely identifies a group of movement lines. | m_movementlinema_v.M_Movement_ID numeric(10) Search |
| Move Line | Inventory Move document Line | The Movement Line indicates the inventory movement document line (if applicable) for this transaction | m_movementlinema_v.M_MovementLine_ID numeric(10) Search |
| Line No | Unique line for this document | Indicates the unique line for a document. It will also control the display order of the lines within a document. | m_movementlinema_v.Line numeric(10) Integer |
| Locator | Warehouse Locator | The Locator indicates where in a Warehouse a product is located. | m_movementlinema_v.M_Locator_ID numeric(10) Table Direct |
| Locator To | Location inventory is moved to | The Locator To indicates the location where the inventory is being moved to. | m_movementlinema_v.M_LocatorTo_ID numeric(10) Table |
| Product | Product, Service, Item | Identifies an item which is either purchased or sold in this organization. | m_movementlinema_v.M_Product_ID numeric(10) Search |
| Movement Quantity | Quantity of a product moved. | The Movement Quantity indicates the quantity of a product that has been moved. | m_movementlinema_v.MovementQty numeric Quantity |
Tab: Invoice
[Created: 12/09/2005 - Updated: 12/09/2005 ]
Description: AP / AR Invoice Lines
Help:
Tab Level: 1
Table 40: Invoice - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | rv_c_invoiceline.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | rv_c_invoiceline.AD_Org_ID numeric(10) Table Direct |
| Attribute Set Instance | Product Attribute Set Instance | The values of the actual Product Attribute Instances. The product level attributes are defined on Product level. | rv_c_invoiceline.M_AttributeSetInstance_ID numeric(10) Search |
| Invoice | Invoice Identifier | The Invoice Document. | rv_c_invoiceline.C_Invoice_ID numeric(10) Search |
| Invoice Line | Invoice Detail Line | The Invoice Line uniquely identifies a single line of an Invoice. | rv_c_invoiceline.C_InvoiceLine_ID numeric(10) Search |
| Product | Product, Service, Item | Identifies an item which is either purchased or sold in this organization. | rv_c_invoiceline.M_Product_ID numeric(10) Search |
| Quantity Invoiced | Invoiced Quantity | The Invoiced Quantity indicates the quantity of a product that have been invoiced. | rv_c_invoiceline.QtyInvoiced numeric Quantity |
| Business Partner | Identifies a Business Partner | A Business Partner is anyone with whom you transact. This can include Vendor, Customer, Employee or Salesperson | rv_c_invoiceline.C_BPartner_ID numeric(10) Search |
| Unit Price | Actual Price | The Actual or Unit Price indicates the Price for a product in source currency. | rv_c_invoiceline.PriceActual numeric Costs+Prices |
| Lot No | Lot number (alphanumeric) | The Lot Number indicates the specific lot that a product was part of. | rv_c_invoiceline.Lot character varying(40) String |
| Lot | Product Lot Definition | The individual Lot of a Product | rv_c_invoiceline.M_Lot_ID numeric(10) Table Direct |
| Serial No | Product Serial Number | The Serial Number identifies a tracked, warranted product. It can only be used when the quantity is 1. | rv_c_invoiceline.SerNo character varying(40) String |
