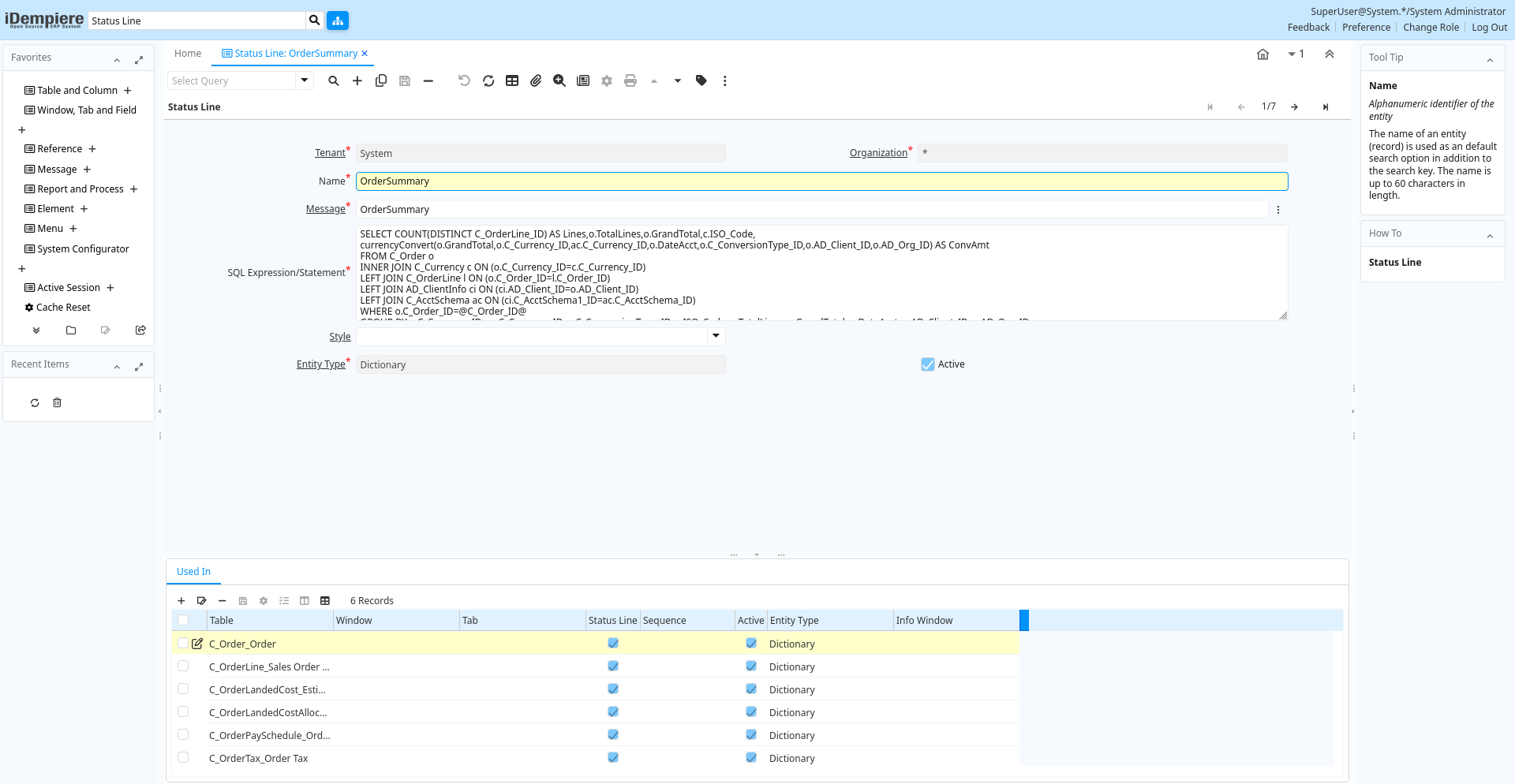

Window: Status Line
[Created: 12/01/2014 - Updated: 12/01/2014 ]
Description:
Help:
Tab: Status Line
[Created: 12/01/2014 - Updated: 12/01/2014 ]
Description:
Help:
Tab Level: 0
Table 10: Status Line - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_statusline.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_statusline.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_statusline.Name character varying(60) String |
| Message | System Message | Information and Error messages | ad_statusline.AD_Message_ID numeric(10) Search |
| SQL Expression/Statement | ad_statusline.SQLStatement character varying(2000) Text | ||
| Style | CSS style for field and label | ad_statusline.AD_Style_ID numeric(10) Table Direct | |
| Entity Type | Dictionary Entity Type; Determines ownership and synchronization | The Entity Types "Dictionary", "iDempiere" and "Application" might be automatically synchronized and customizations deleted or overwritten. For customizations, copy the entity and select "User"! | ad_statusline.EntityType character varying(40) Table |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_statusline.IsActive character(1) Yes-No |
Tab: Used In
[Created: 12/01/2014 - Updated: 12/01/2014 ]
Description:
Help:
Tab Level: 1
Table 30: Used In - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_statuslineusedin.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_statuslineusedin.AD_Org_ID numeric(10) Table Direct |
| Status Line | ad_statuslineusedin.AD_StatusLine_ID numeric(10) Search | ||
| Table | Database Table information | The Database Table provides the information of the table definition | ad_statuslineusedin.AD_Table_ID numeric(10) Table Direct |
| Entity Type | Dictionary Entity Type; Determines ownership and synchronization | The Entity Types "Dictionary", "iDempiere" and "Application" might be automatically synchronized and customizations deleted or overwritten. For customizations, copy the entity and select "User"! | ad_statuslineusedin.EntityType character varying(40) Table |
| Window | Data entry or display window | The Window field identifies a unique Window in the system. | ad_statuslineusedin.AD_Window_ID numeric(10) Table Direct |
| Tab | Tab within a Window | The Tab indicates a tab that displays within a window. | ad_statuslineusedin.AD_Tab_ID numeric(10) Table Direct |
| Info Window | Info and search/select Window | The Info window is used to search and select records as well as display information relevant to the selection. | ad_statuslineusedin.AD_InfoWindow_ID numeric(10) Table Direct |
| Sequence | Method of ordering records; lowest number comes first | The Sequence indicates the order of records | ad_statuslineusedin.SeqNo numeric(10) Integer |
| Status Line | Defines if this record refers to a status line or to a help widget | If checked the definition corresponds to a status line, when unchecked it corresponds to a help widget | ad_statuslineusedin.IsStatusLine character(1) Yes-No |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_statuslineusedin.IsActive character(1) Yes-No |
