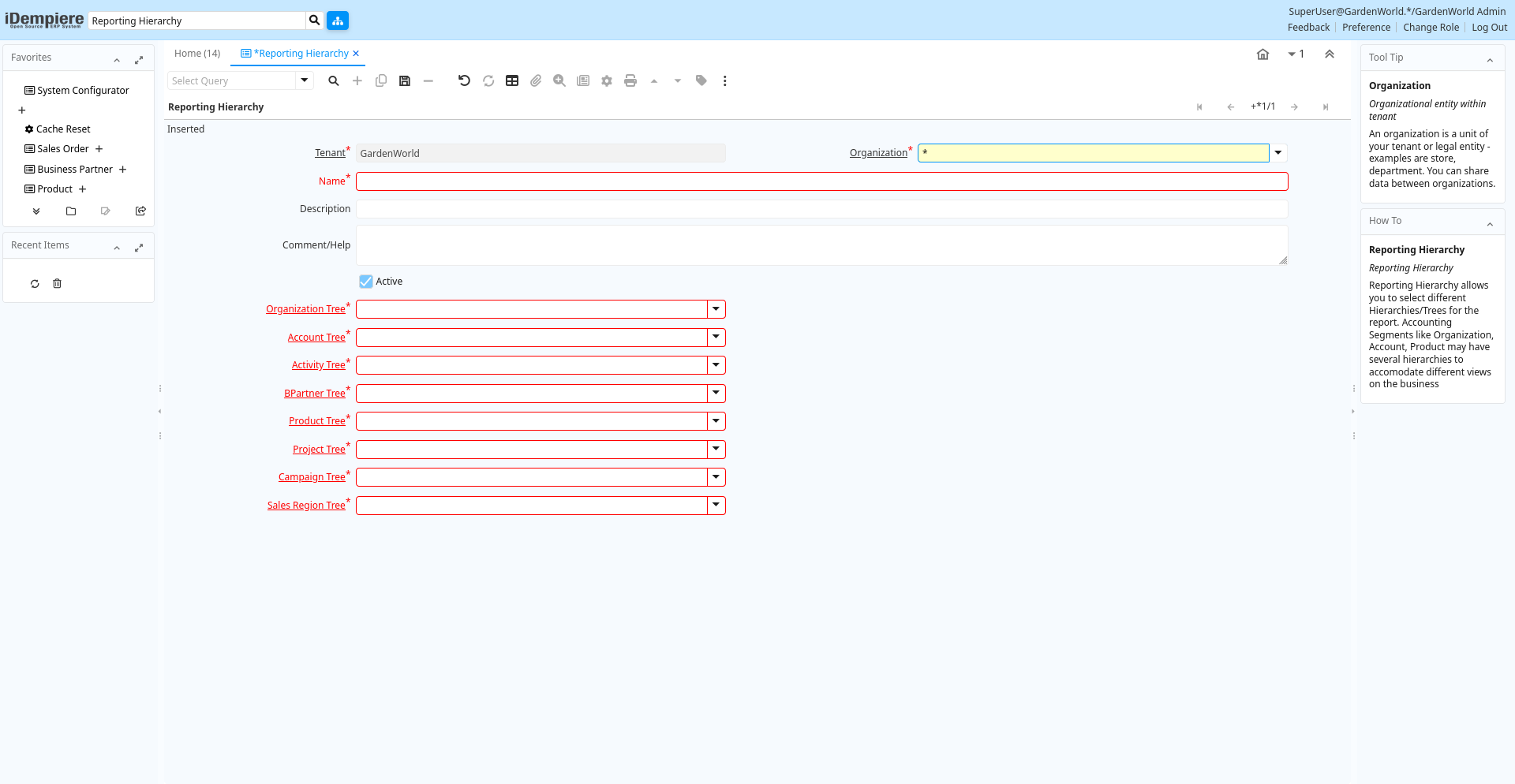

Window: Reporting Hierarchy
[Created: 23/10/2005 - Updated: 15/01/2024 ]
Description: Define Reporting Hierarchy
Help: Reporting Hierarchy allows you to select different Hierarchies/Trees for the report.Accounting Segments like Organization, Account, Product may have several hierarchies to accommodate different views on the business
Tab: Reporting Hierarchy
[Created: 23/10/2005 - Updated: 23/10/2005 ]
Description: Reporting Hierarchy
Help: Reporting Hierarchy allows you to select different Hierarchies/Trees for the report.Accounting Segments like Organization, Account, Product may have several hierarchies to accomodate different views on the business
Tab Level: 0
Table 10: Reporting Hierarchy - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | pa_hierarchy.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | pa_hierarchy.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | pa_hierarchy.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | pa_hierarchy.Description character varying(255) String |
| Comment/Help | Comment or Hint | The Help field contains a hint, comment or help about the use of this item. | pa_hierarchy.Help character varying(2000) Text |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | pa_hierarchy.IsActive character(1) Yes-No |
| Organization Tree | Trees are used for (financial) reporting and security access (via role) | Trees are used for (finanial) reporting and security access (via role) | pa_hierarchy.AD_Tree_Org_ID numeric(10) Table |
| Account Tree | Tree for Natural Account Tree | pa_hierarchy.AD_Tree_Account_ID numeric(10) Table | |
| Activity Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_Activity_ID numeric(10) Table |
| BPartner Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_BPartner_ID numeric(10) Table |
| Product Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_Product_ID numeric(10) Table |
| Project Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_Project_ID numeric(10) Table |
| Campaign Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_Campaign_ID numeric(10) Table |
| Sales Region Tree | Trees are used for (financial) reporting | Trees are used for (finanial) reporting | pa_hierarchy.AD_Tree_SalesRegion_ID numeric(10) Table |
