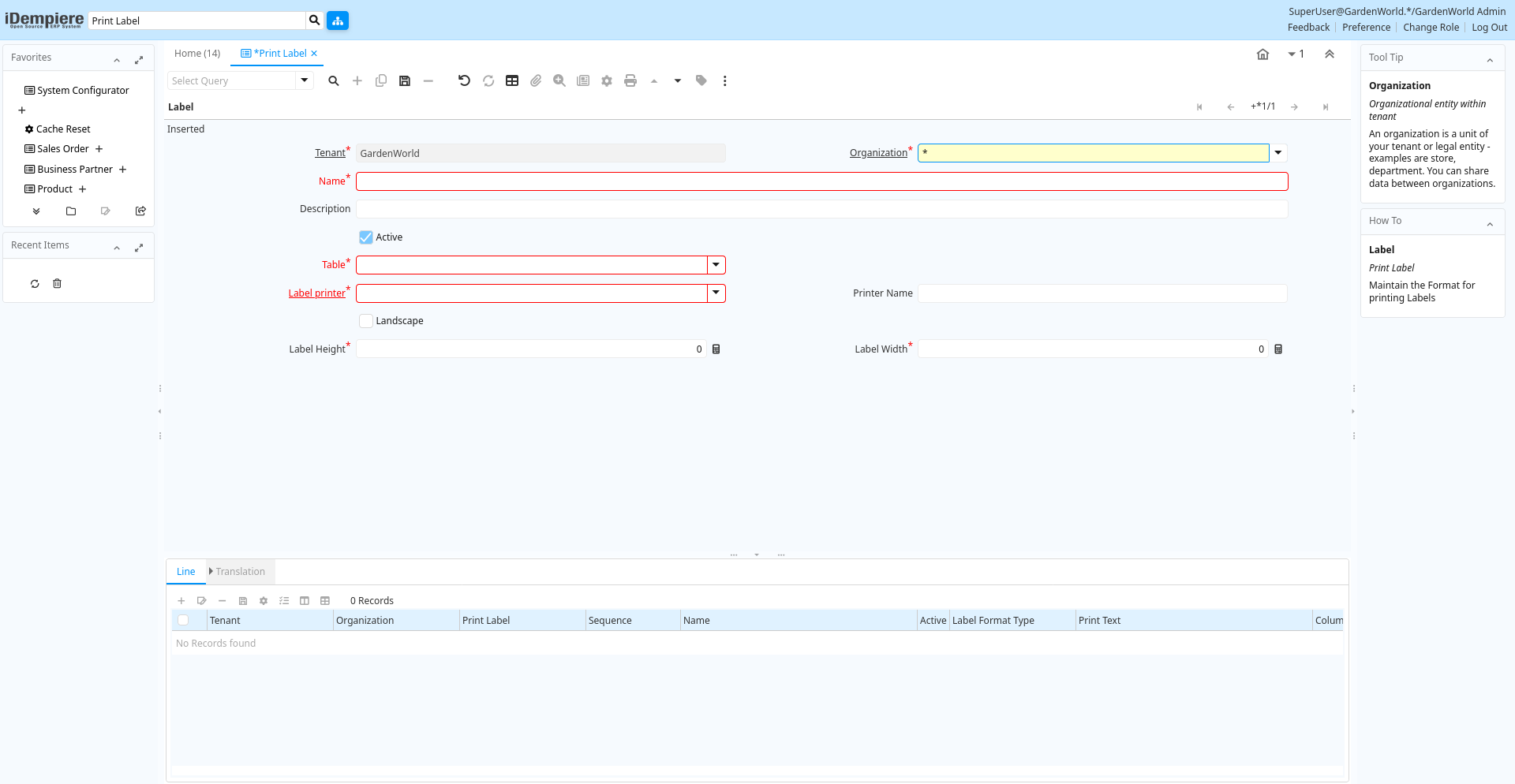

Window: Print Label
[Created: 28/05/2003 - Updated: 17/02/2022 ]
Description: Print Label Format
Help: Maintain Format to print Labels
Tab: Label
[Created: 28/05/2003 - Updated: 02/01/2000 ]
Description: Print Label
Help: Maintain the Format for printing Labels
Tab Level: 0
Table 10: Label - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_printlabel.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_printlabel.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_printlabel.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | ad_printlabel.Description character varying(255) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_printlabel.IsActive character(1) Yes-No |
| Table | Database Table information | The Database Table provides the information of the table definition | ad_printlabel.AD_Table_ID numeric(10) Table Direct |
| Label printer | Label Printer Definition | ad_printlabel.AD_LabelPrinter_ID numeric(10) Table Direct | |
| Printer Name | Name of the Printer | Internal (Operating System) Name of the Printer; Please mote that the printer name may be different on different tenants. Enter a printer name, which applies to ALL tenants (e.g. printer on a server). If none is entered, the default printer is used. You specify your default printer when you log in. You can also change the default printer in Preferences. | ad_printlabel.PrinterName character varying(40) String |
| Landscape | Landscape orientation | ad_printlabel.IsLandscape character(1) Yes-No | |
| Label Height | Height of the label | Physical height of the label | ad_printlabel.LabelHeight numeric(10) Integer |
| Label Width | Width of the Label | Physical Width of the Label | ad_printlabel.LabelWidth numeric(10) Integer |
Tab: Line
[Created: 28/05/2003 - Updated: 02/01/2000 ]
Description: Print Label Line
Help: Maintain Format of the line on a Label
Tab Level: 1
Table 20: Line - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_printlabelline.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_printlabelline.AD_Org_ID numeric(10) Table Direct |
| Print Label | Label Format to print | Format for printing Labels | ad_printlabelline.AD_PrintLabel_ID numeric(10) Table Direct |
| Sequence | Method of ordering records; lowest number comes first | The Sequence indicates the order of records | ad_printlabelline.SeqNo numeric(10) Integer |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_printlabelline.Name character varying(60) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_printlabelline.IsActive character(1) Yes-No |
| Label Format Type | Label Format Type | ad_printlabelline.LabelFormatType character(1) List | |
| Print Text | The label text to be printed on a document or correspondence. | The Label to be printed indicates the name that will be printed on a document or correspondence. The max length is 2000 characters. | ad_printlabelline.PrintName character varying(60) String |
| Column | Column in the table | Link to the database column of the table | ad_printlabelline.AD_Column_ID numeric(10) Table Direct |
| X Position | Absolute X (horizontal) position in 1/72 of an inch | Absolute X (horizontal) position in 1/72 of an inch | ad_printlabelline.XPosition numeric(10) Integer |
| Y Position | Absolute Y (vertical) position in 1/72 of an inch | Absolute Y (vertical) position in 1/72 of an inch | ad_printlabelline.YPosition numeric(10) Integer |
| Label printer Function | Function of Label Printer | ad_printlabelline.AD_LabelPrinterFunction_ID numeric(10) Table Direct |
Tab: Translation
[Created: 28/05/2003 - Updated: 27/10/2024 ]
Description: Print Label Line Translation
Help: Maintain the translation for Label Line formats
Tab Level: 3
Table 30: Translation - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_printlabelline_trl.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_printlabelline_trl.AD_Org_ID numeric(10) Table Direct |
| Print Label Line | Print Label Line Format | Format of the line on a Label | ad_printlabelline_trl.AD_PrintLabelLine_ID numeric(10) Table Direct |
| Language | Language for this entity | The Language identifies the language to use for display and formatting | ad_printlabelline_trl.AD_Language character varying(6) Table |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_printlabelline_trl.IsActive character(1) Yes-No |
| Translated | This column is translated | The Translated checkbox indicates if this column is translated. | ad_printlabelline_trl.IsTranslated character(1) Yes-No |
| Print Text | The label text to be printed on a document or correspondence. | The Label to be printed indicates the name that will be printed on a document or correspondence. The max length is 2000 characters. | ad_printlabelline_trl.PrintName character varying(60) String |
