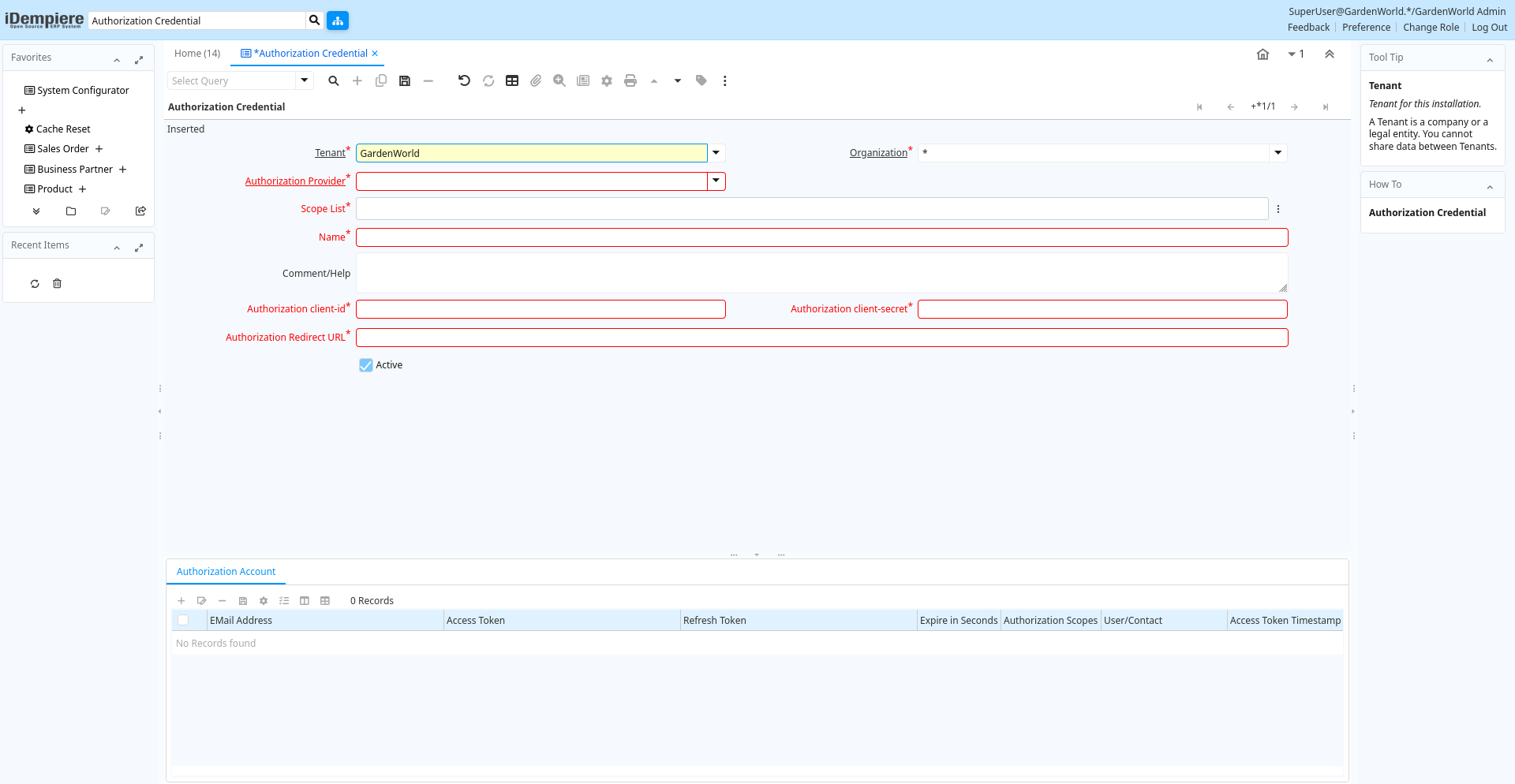

Window: Authorization Credential
[Created: 17/02/2021 - Updated: 17/02/2021 ]
Description:
Help:
Tab: Authorization Credential
[Created: 17/02/2021 - Updated: 17/02/2021 ]
Description:
Help:
Tab Level: 0
Table 10: Authorization Credential - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_authorizationcredential.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_authorizationcredential.AD_Org_ID numeric(10) Table Direct |
| Authorization Provider | ad_authorizationcredential.AD_AuthorizationProvider_ID numeric(10) Table Direct | ||
| Scope List | ad_authorizationcredential.AD_AuthorizationScopeList character varying(2000) Chosen Multiple Selection List | ||
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_authorizationcredential.Name character varying(60) String |
| Comment/Help | Comment or Hint | The Help field contains a hint, comment or help about the use of this item. | ad_authorizationcredential.Help character varying(2000) Text |
| Authorization client-id | ad_authorizationcredential.AuthorizationClientId character varying(2000) String | ||
| Authorization client-secret | ad_authorizationcredential.AuthorizationClientSecret character varying(2000) String | ||
| Authorization Redirect URL | ad_authorizationcredential.AuthorizationRedirectURL character varying(2000) String | ||
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_authorizationcredential.IsActive character(1) Yes-No |
Tab: Authorization Account
[Created: 17/02/2021 - Updated: 11/05/2021 ]
Description:
Help:
Tab Level: 1
Table 20: Authorization Account - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_authorizationaccount.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_authorizationaccount.AD_Org_ID numeric(10) Table Direct |
| Authorization Credential | ad_authorizationaccount.AD_AuthorizationCredential_ID numeric(10) Table Direct | ||
| Authorization Scopes | ad_authorizationaccount.AD_AuthorizationScopes character varying(255) Chosen Multiple Selection List | ||
| User/Contact | User within the system - Internal or Business Partner Contact | The User identifies a unique user in the system. This could be an internal user or a business partner contact | ad_authorizationaccount.AD_User_ID numeric(10) Search |
| EMail Address | Electronic Mail Address | The Email Address is the Electronic Mail ID for this User and should be fully qualified (e.g. joe.smith@company.com). The Email Address is used to access the self service application functionality from the web. | ad_authorizationaccount.EMail character varying(200) String |
| Preferred User Name | ad_authorizationaccount.Preferred_UserName character varying(1000) String | ||
| Access Token | ad_authorizationaccount.AccessToken text Text | ||
| Refresh Token | ad_authorizationaccount.RefreshToken character varying(4000) String | ||
| Comment/Help | Comment or Hint | The Help field contains a hint, comment or help about the use of this item. | ad_authorizationaccount.Help character varying(2000) Text |
| Expire in Seconds | ad_authorizationaccount.ExpireInSeconds numeric Number | ||
| Access Token Timestamp | ad_authorizationaccount.AccessTokenTimestamp timestamp without time zone Date+Time | ||
| Authorized | ad_authorizationaccount.IsAuthorized character(1) Yes-No | ||
| Access Revoked | ad_authorizationaccount.IsAccessRevoked character(1) Yes-No | ||
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_authorizationaccount.IsActive character(1) Yes-No |
