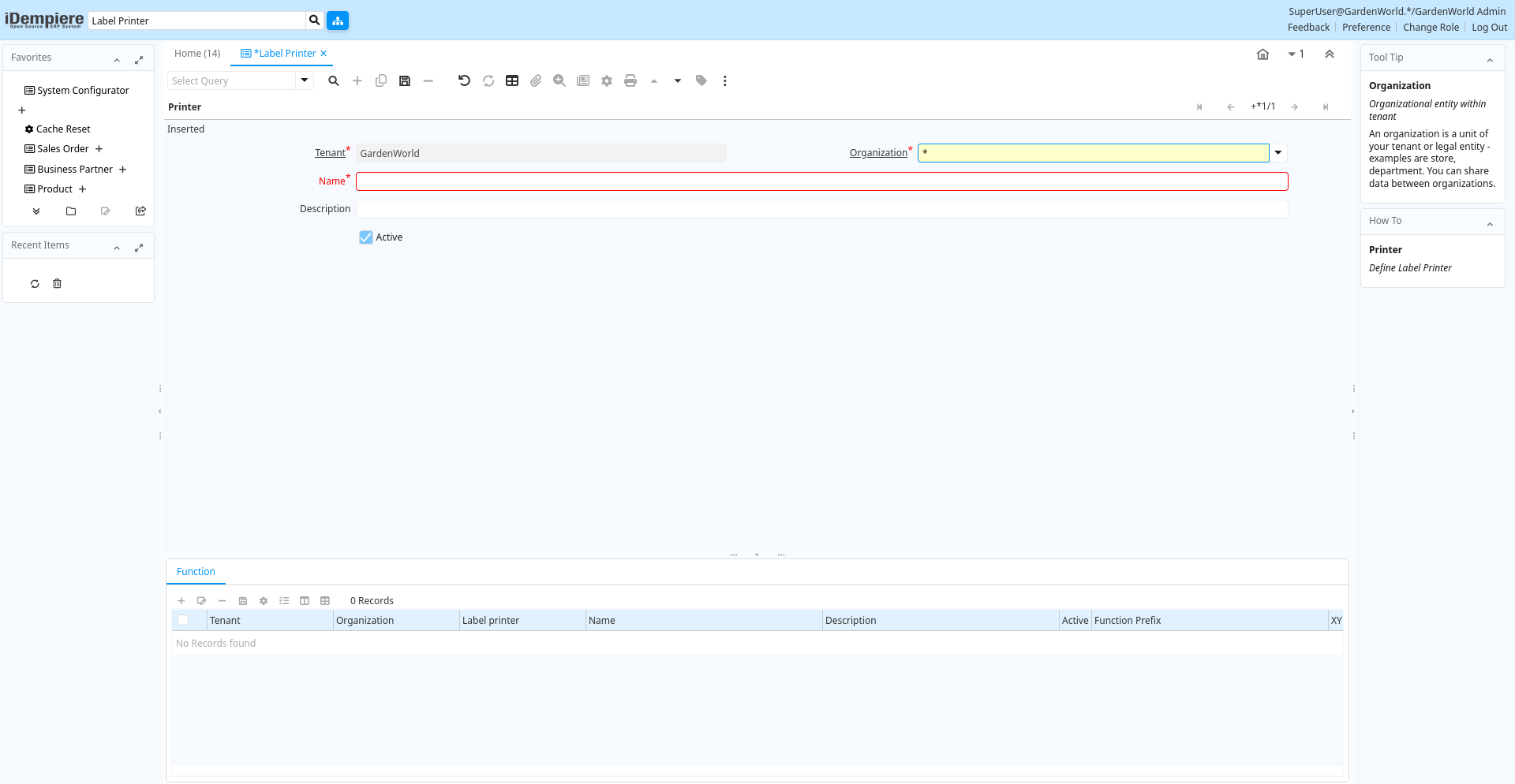

Window: Label Printer
[Created: 07/10/2003 - Updated: 17/02/2022 ]
Description: Maintain Label Printer Definition
Help:
Tab: Printer
[Created: 07/10/2003 - Updated: 02/01/2000 ]
Description: Define Label Printer
Help:
Tab Level: 0
Table 10: Printer - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_labelprinter.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_labelprinter.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_labelprinter.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | ad_labelprinter.Description character varying(255) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_labelprinter.IsActive character(1) Yes-No |
Tab: Function
[Created: 07/10/2003 - Updated: 02/01/2000 ]
Description: Label Printer Function
Help:
Tab Level: 1
Table 20: Function - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_labelprinterfunction.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_labelprinterfunction.AD_Org_ID numeric(10) Table Direct |
| Label printer | Label Printer Definition | ad_labelprinterfunction.AD_LabelPrinter_ID numeric(10) Table Direct | |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_labelprinterfunction.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | ad_labelprinterfunction.Description character varying(255) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_labelprinterfunction.IsActive character(1) Yes-No |
| Function Prefix | Data sent before the function | ad_labelprinterfunction.FunctionPrefix character varying(40) String | |
| XY Position | The Function is XY position | This function positions for the next print operation | ad_labelprinterfunction.IsXYPosition character(1) Yes-No |
| XY Separator | The separator between the X and Y function. | ad_labelprinterfunction.XYSeparator character varying(20) String | |
| Function Suffix | Data sent after the function | ad_labelprinterfunction.FunctionSuffix character varying(40) String |
