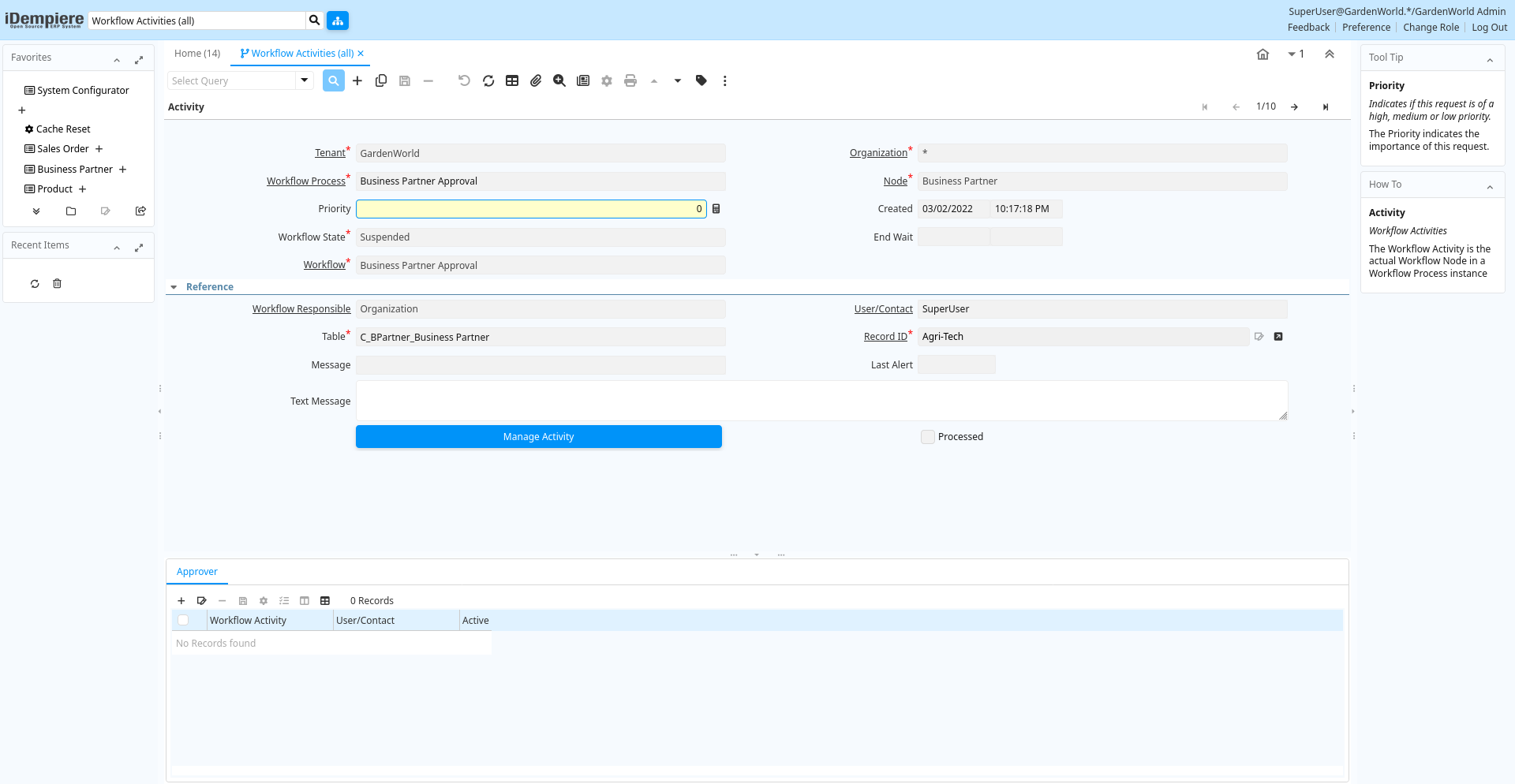

Window: Workflow Activities (all)
[Created: 01/01/2004 - Updated: 09/02/2005 ]
Description: Monitor all Workflow activities
Help: Maintain all Workflow activities
Tab: Activity
[Created: 01/01/2004 - Updated: 27/11/2005 ]
Description: Workflow Activities
Help: The Workflow Activity is the actual Workflow Node in a Workflow Process instance
Tab Level: 0
Table 10: Activity - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_wf_activity.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_wf_activity.AD_Org_ID numeric(10) Table Direct |
| Workflow Process | Actual Workflow Process Instance | Instance of a workflow execution | ad_wf_activity.AD_WF_Process_ID numeric(10) Search |
| Node | Workflow Node (activity), step or process | The Workflow Node indicates a unique step or process in a Workflow. | ad_wf_activity.AD_WF_Node_ID numeric(10) Table Direct |
| Priority | Indicates if this request is of a high, medium or low priority. | The Priority indicates the importance of this request. | ad_wf_activity.Priority numeric(10) Integer |
| Created | Date this record was created | The Created field indicates the date that this record was created. | ad_wf_activity.Created timestamp without time zone Date+Time |
| Workflow State | State of the execution of the workflow | ad_wf_activity.WFState character(2) List | |
| End Wait | End of sleep time | End of suspension (sleep) | ad_wf_activity.EndWaitTime timestamp without time zone Date+Time |
| Workflow | Workflow or combination of tasks | The Workflow field identifies a unique Workflow in the system. | ad_wf_activity.AD_Workflow_ID numeric(10) Table Direct |
| Workflow Responsible | Responsible for Workflow Execution | The ultimate responsibility for a workflow is with an actual user. The Workflow Responsible allows to define ways to find that actual User. | ad_wf_activity.AD_WF_Responsible_ID numeric(10) Table Direct |
| User/Contact | User within the system - Internal or Business Partner Contact | The User identifies a unique user in the system. This could be an internal user or a business partner contact | ad_wf_activity.AD_User_ID numeric(10) Search |
| Table | Database Table information | The Database Table provides the information of the table definition | ad_wf_activity.AD_Table_ID numeric(10) Search |
| Record ID | Direct internal record ID | The Record ID is the internal unique identifier of a record. Please note that zooming to the record may not be successful for Orders, Invoices and Shipment/Receipts as sometimes the Sales Order type is not known. | ad_wf_activity.Record_ID numeric(10) Record ID |
| Message | System Message | Information and Error messages | ad_wf_activity.AD_Message_ID numeric(10) Search |
| Last Alert | Date when last alert were sent | The last alert date is updated when a reminder email is sent | ad_wf_activity.DateLastAlert timestamp without time zone Date |
| Text Message | Text Message | ad_wf_activity.TextMsg character varying(2000) Text | |
| Manage Activity | Manage Workflow Activity | Update or stop Workflow Activity | ad_wf_activity.Processing character(1) Button |
| Processed | The document has been processed | The Processed checkbox indicates that a document has been processed. | ad_wf_activity.Processed character(1) Yes-No |
| Workflow Activity | Workflow Activity | The Workflow Activity is the actual Workflow Node in a Workflow Process instance | ad_wf_activity.AD_WF_Activity_ID numeric(10) ID |
Tab: Approver
[Created: 08/08/2017 - Updated: 08/08/2017 ]
Description:
Help:
Tab Level: 1
Table 20: Approver - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_wf_activityapprover.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_wf_activityapprover.AD_Org_ID numeric(10) Table Direct |
| Workflow Activity | Workflow Activity | The Workflow Activity is the actual Workflow Node in a Workflow Process instance | ad_wf_activityapprover.AD_WF_Activity_ID numeric(10) Search |
| User/Contact | User within the system - Internal or Business Partner Contact | The User identifies a unique user in the system. This could be an internal user or a business partner contact | ad_wf_activityapprover.AD_User_ID numeric(10) Search |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_wf_activityapprover.IsActive character(1) Yes-No |
