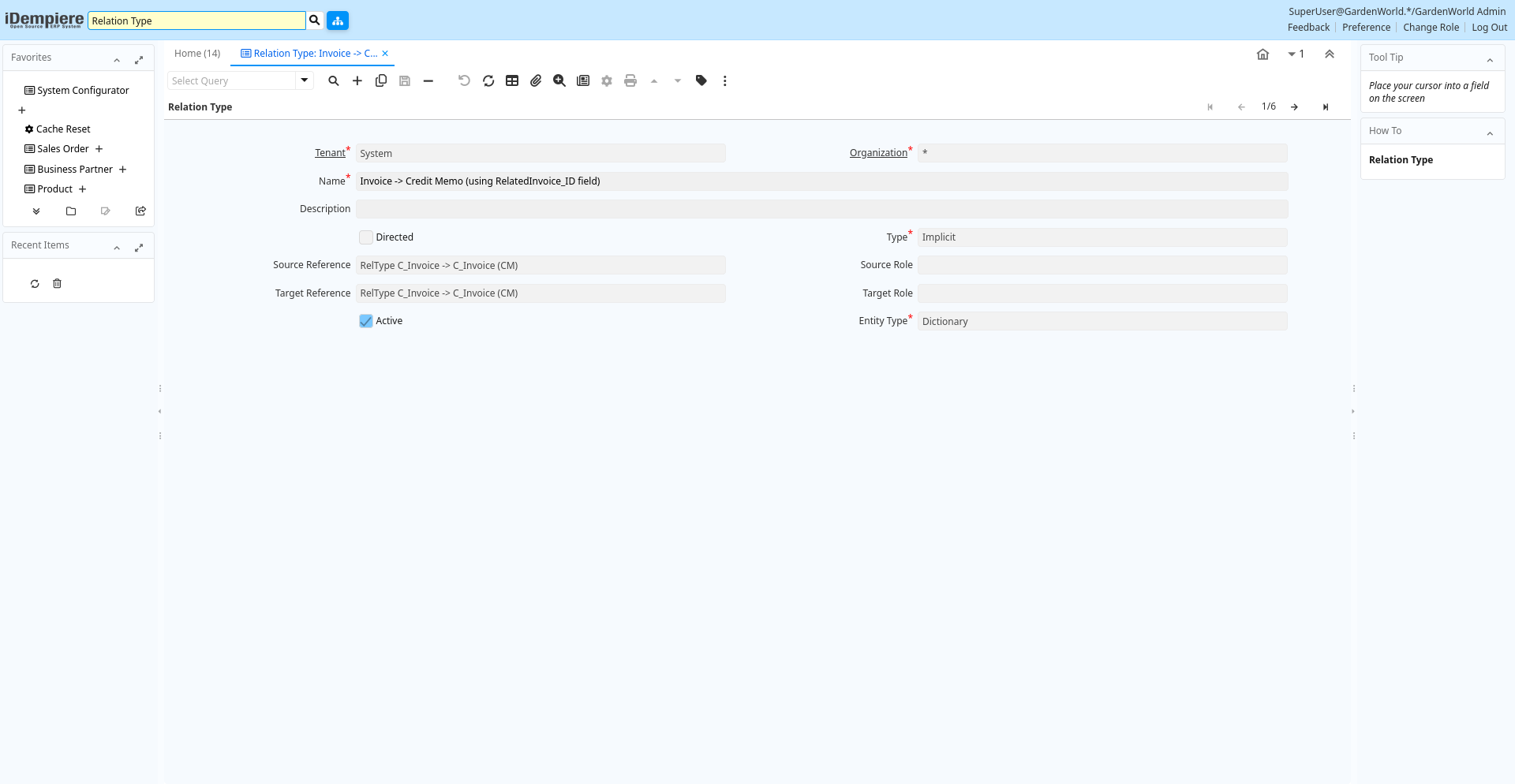

Window: Relation Type
[Created: 13/11/2009 - Updated: 13/11/2009 ]
Description:
Help:
Tab: Relation Type
[Created: 13/11/2009 - Updated: 13/11/2009 ]
Description:
Help:
Tab Level: 0
Table 10: Relation Type - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_relationtype.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_relationtype.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_relationtype.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | ad_relationtype.Description character varying(255) String |
| Directed | Tells whether one "sees" the other end of the relation from each end or just from the source | ad_relationtype.IsDirected character(1) Yes-No | |
| Type | Type of Validation (SQL, Java Script, Java Language) | The Type indicates the type of validation that will occur. This can be SQL, Java Script or Java Language. | ad_relationtype.Type character(1) List |
| Source Reference | ad_relationtype.AD_Reference_Source_ID numeric(10) Table | ||
| Source Role | If set, this role will be used as label for the zoom destination instead of the destinations's window name | ad_relationtype.Role_Source character varying(50) List | |
| Target Reference | ad_relationtype.AD_Reference_Target_ID numeric(10) Table | ||
| Target Role | If set, this role will be used as label for the zoom destination instead of the destinations's window name | ad_relationtype.Role_Target character varying(50) List | |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_relationtype.IsActive character(1) Yes-No |
| Entity Type | Dictionary Entity Type; Determines ownership and synchronization | The Entity Types "Dictionary", "iDempiere" and "Application" might be automatically synchronized and customizations deleted or overwritten. For customizations, copy the entity and select "User"! | ad_relationtype.EntityType character varying(40) Table |
