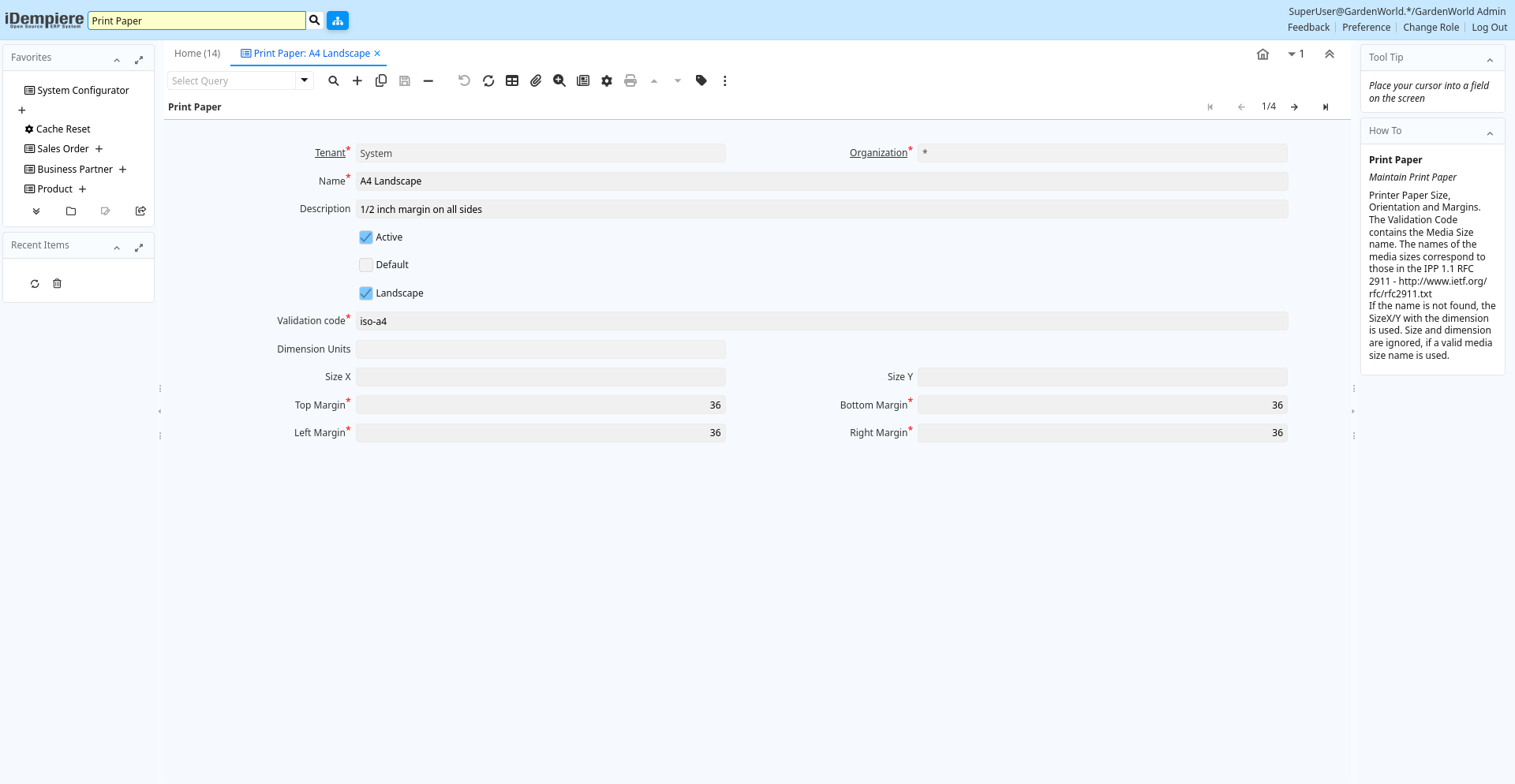

Window: Print Paper
[Created: 11/07/2002 - Updated: 02/01/2000 ]
Description: Maintain Print Paper
Help: Printer Paper Size, Orientation and Margins
Tab: Print Paper
[Created: 11/07/2002 - Updated: 18/01/2006 ]
Description: Maintain Print Paper
Help: Printer Paper Size, Orientation and Margins. The Validation Code contains the Media Size name. The names of the media sizes correspond to those in the IPP 1.1 RFC 2911 - http://www.ietf.org/rfc/rfc2911.txt If the name is not found, the SizeX/Y with the dimension is used. Size and dimension are ignored, if a valid media size name is used.
Tab Level: 0
Table 10: Print Paper - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | ad_printpaper.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | ad_printpaper.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | ad_printpaper.Name character varying(60) String |
| Description | Optional short description of the record | A description is limited to 255 characters. | ad_printpaper.Description character varying(255) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | ad_printpaper.IsActive character(1) Yes-No |
| Default | Default value | The Default Checkbox indicates if this record will be used as a default value. | ad_printpaper.IsDefault character(1) Yes-No |
| Landscape | Landscape orientation | ad_printpaper.IsLandscape character(1) Yes-No | |
| Validation code | Validation Code | The Validation Code displays the date, time and message of the error. | ad_printpaper.Code character varying(2000) String |
| Dimension Units | Units of Dimension | ad_printpaper.DimensionUnits character(1) List | |
| Size X | X (horizontal) dimension size | Size of X (horizontal) dimension in Units | ad_printpaper.SizeX numeric Number |
| Size Y | Y (vertical) dimension size | Size of Y (vertical) dimension in Units | ad_printpaper.SizeY numeric Number |
| Top Margin | Top Space in 1/72 inch | Space on top of a page in 1/72 inch | ad_printpaper.MarginTop numeric(10) Integer |
| Bottom Margin | Bottom Space in 1/72 inch | Space on bottom of a page in 1/72 inch | ad_printpaper.MarginBottom numeric(10) Integer |
| Left Margin | Left Space in 1/72 inch | Space on left side of a page in 1/72 inch | ad_printpaper.MarginLeft numeric(10) Integer |
| Right Margin | Right Space in 1/72 inch | Space on right side of a page in 1/72 inch | ad_printpaper.MarginRight numeric(10) Integer |
| Set Print Format | Set for all Print Formats with same Landscape/Portrait | ad_printpaper.Processing character(1) Button |
