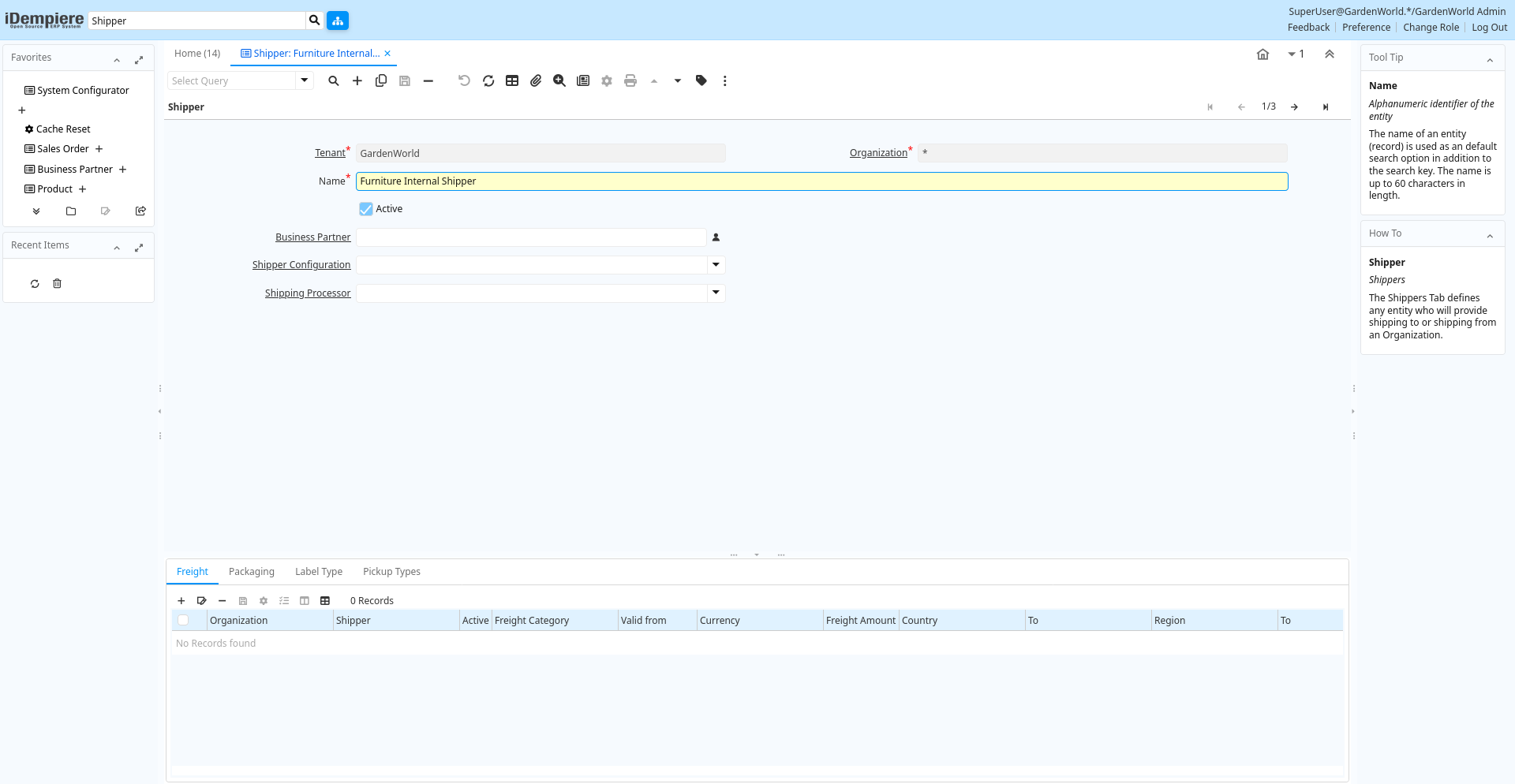

Window: Shipper
[Created: 09/08/1999 - Updated: 02/01/2000 ]
Description: Maintain Shippers
Help: The Shipper Window defines the different shipping provides used by an Organization. When a delivery method of Shipper is used on an Order a predefined Shipper must be selected.
Tab: Shipper
[Created: 09/08/1999 - Updated: 17/12/2007 ]
Description: Shippers
Help: The Shippers Tab defines any entity who will provide shipping to or shipping from an Organization.
Tab Level: 0
Table 10: Shipper - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_shipper.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_shipper.AD_Org_ID numeric(10) Table Direct |
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | m_shipper.Name character varying(60) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | m_shipper.IsActive character(1) Yes-No |
| Business Partner | Identifies a Business Partner | A Business Partner is anyone with whom you transact. This can include Vendor, Customer, Employee or Salesperson | m_shipper.C_BPartner_ID numeric(10) Search |
| Shipper Configuration | m_shipper.M_ShipperCfg_ID numeric(10) Table Direct | ||
| Shipping Processor | m_shipper.M_ShippingProcessor_ID numeric(10) Table | ||
| Shipper Create From ... | m_shipper.CreateFrom character(1) Button |
Tab: Freight
[Created: 07/06/2003 - Updated: 17/12/2007 ]
Description: Freight Rates
Help: Freight Rates for Shipper
Tab Level: 1
Table 20: Freight - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_freight.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_freight.AD_Org_ID numeric(10) Table Direct |
| Shipper | Method or manner of product delivery | The Shipper indicates the method of delivering product | m_freight.M_Shipper_ID numeric(10) Table |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | m_freight.IsActive character(1) Yes-No |
| Freight Category | Category of the Freight | Freight Categories are used to calculate the Freight for the Shipper selected | m_freight.M_FreightCategory_ID numeric(10) Table Direct |
| Valid from | Valid from including this date (first day) | The Valid From date indicates the first day of a date range | m_freight.ValidFrom timestamp without time zone Date |
| Max Weight | m_freight.MaxWeight numeric Amount | ||
| Max Dimension | m_freight.MaxDimension numeric Amount | ||
| Country | Country | The Country defines a Country. Each Country must be defined before it can be used in any document. | m_freight.C_Country_ID numeric(10) Table Direct |
| To | Receiving Country | The To Country indicates the receiving country on a document | m_freight.To_Country_ID numeric(10) Table |
| Region | Identifies a geographical Region | The Region identifies a unique Region for this Country. | m_freight.C_Region_ID numeric(10) Table Direct |
| To | Receiving Region | The To Region indicates the receiving region on a document | m_freight.To_Region_ID numeric(10) Table |
| Currency | The Currency for this record | Indicates the Currency to be used when processing or reporting on this record | m_freight.C_Currency_ID numeric(10) Table Direct |
| Freight Amount | Freight Amount | The Freight Amount indicates the amount charged for Freight in the document currency. | m_freight.FreightAmt numeric Amount |
Tab: Packaging
[Created: 06/12/2012 - Updated: 06/12/2012 ]
Description: Packaging Options supported by the Shipper
Help:
Tab Level: 1
Table 30: Packaging - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_shipperpackaging.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_shipperpackaging.AD_Org_ID numeric(10) Table Direct |
| Shipper | Method or manner of product delivery | The Shipper indicates the method of delivering product | m_shipperpackaging.M_Shipper_ID numeric(10) Table |
| Shipper Packaging Configuration | m_shipperpackaging.M_ShipperPackagingCfg_ID numeric(10) Table Direct | ||
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | m_shipperpackaging.Name character varying(60) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | m_shipperpackaging.IsActive character(1) Yes-No |
| Default | Default value | The Default Checkbox indicates if this record will be used as a default value. | m_shipperpackaging.IsDefault character(1) Yes-No |
| Weight | Weight of a product | The Weight indicates the weight of the product in the Weight UOM of the Tenant | m_shipperpackaging.Weight numeric Quantity |
Tab: Label Type
[Created: 06/12/2012 - Updated: 06/12/2012 ]
Description: Label Types Supported by the Shipper.
Help: Used when booking a shipment online to define the label format that will be printed.
Tab Level: 1
Table 40: Label Type - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_shipperlabels.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_shipperlabels.AD_Org_ID numeric(10) Table Direct |
| Shipper | Method or manner of product delivery | The Shipper indicates the method of delivering product | m_shipperlabels.M_Shipper_ID numeric(10) Table |
| Shipper Labels Configuration | m_shipperlabels.M_ShipperLabelsCfg_ID numeric(10) Table Direct | ||
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | m_shipperlabels.Name character varying(60) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | m_shipperlabels.IsActive character(1) Yes-No |
| Default | Default value | The Default Checkbox indicates if this record will be used as a default value. | m_shipperlabels.IsDefault character(1) Yes-No |
| Label Print Method | m_shipperlabels.LabelPrintMethod character(1) List |
Tab: Pickup Types
[Created: 06/12/2012 - Updated: 06/12/2012 ]
Description: Methods that the Shipper will support for picking up from your location
Help:
Tab Level: 1
Table 50: Pickup Types - Fields
Table: Report Parameters
| Name | Description | Help | Technical Info |
|---|---|---|---|
| Tenant | Tenant for this installation. | A Tenant is a company or a legal entity. You cannot share data between Tenants. | m_shipperpickuptypes.AD_Client_ID numeric(10) Table Direct |
| Organization | Organizational entity within tenant | An organization is a unit of your tenant or legal entity - examples are store, department. You can share data between organizations. | m_shipperpickuptypes.AD_Org_ID numeric(10) Table Direct |
| Shipper | Method or manner of product delivery | The Shipper indicates the method of delivering product | m_shipperpickuptypes.M_Shipper_ID numeric(10) Table |
| Shipper Pickup Types Configuration | m_shipperpickuptypes.M_ShipperPickupTypesCfg_ID numeric(10) Table Direct | ||
| Name | Alphanumeric identifier of the entity | The name of an entity (record) is used as an default search option in addition to the search key. The name is up to 60 characters in length. | m_shipperpickuptypes.Name character varying(60) String |
| Active | The record is active in the system | There are two methods of making records unavailable in the system: One is to delete the record, the other is to de-activate the record. A de-activated record is not available for selection, but available for reports.There are two reasons for de-activating and not deleting records:(1) The system requires the record for audit purposes.(2) The record is referenced by other records. E.g., you cannot delete a Business Partner, if there are invoices for this partner record existing. You de-activate the Business Partner and prevent that this record is used for future entries. | m_shipperpickuptypes.IsActive character(1) Yes-No |
| Default | Default value | The Default Checkbox indicates if this record will be used as a default value. | m_shipperpickuptypes.IsDefault character(1) Yes-No |
